Light Component

The Light component simulates soft studio light with various types of punctual and area lights. The Light component supports the punctual lights Point (simple punctual) and Spot (simple punctual), which are infinitesimally small. These are slightly more performant than their area light counterparts, but they produce simpler light effects. The Light component also supports the area lights Point (sphere), Spot (disk), Capsule, Quad, and Polygon. These most accurately simulate real-world light sources.

Light types

Point (sphere)
Emits light from the surface of a sphere in all directions, similar to a standard light bulb. The Point (sphere) light type supports shadow effects.
Point (simple punctual)
Emits light from a single point in space. The Point (simple punctual) light type is less photorealistic than the Point (sphere) light type, but Point (simple punctual) is more performant.
Spot (disk)
Emits light from a circle in 3D space, similar to a spotlight or recessed light. You can add shutters to constrain the light to a cone. The Spot (disk) light type supports shadow effects.
Spot (simple punctual)
Emits light from a single point in space constrained to a cone. The Spot (simple punctual) light type is less photorealistic than the Spot (disk) light type, but Spot (simple punctual) is more performant.
Quad
Emits light from the surface of a rectangle in 3D space. The Quad light type is most useful for illuminating a larger area with diffuse light. By default, the Quad light type uses linearly transformed cosines to calculate accurate lighting. It also supports a fast approximation calculation that’s more performant but produces lower-quality light. The Quad light type can emit light from one or both directions.
Polygon
Emits light from an arbitrarily shaped polygon in 3D space that are approximated by linearly transformed cosines. This polygon can have up to 64 points, but the Polygon light type becomes more expensive as the number of points in the polygon increases. The Polygon light type is the most expensive light type, but it produces very realistic area lighting. The Polygon light type can emit light from one or both directions.

Provider

Atom Gem

Dependencies

Depending on the light type, the Light component has the following dependencies:

Properties

light-component-default-light-type

light-component-point-sphere-light-type

light-component-point-simple-punctua-light-type

light-component-spot-disk-light-type

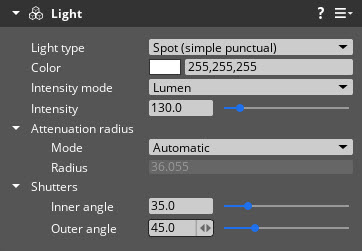

light-component-spot-simple-punctual-light-type

light-component-capsule-light-type

light-component-quad-light-type

light-component-polygon-light-type

Base properties

PropertyDescriptionValuesDefault
Light typeThe type of light. The properties vary for each light type.Point (sphere), Point (simple punctual), Spot (disk), Spot (simple punctual), Capsule, Quad, Polygon-
ColorThe color of the light. Color acts as a gel on a pure white light and reduces the total energy output for light of any other color. For example, a 100 Lumen area light with a color setting of medium gray (18%) outputs only 18 lumens of light.Eight bits per channel color: 0 to 255255,255,255
Intensity modeThe photometric unit of the light. Candela and Lumen specify the total amount of light energy that’s emitted from the entire surface area of the shape. If this mode is set as either Candela or Lumen, and Intensity is specified as 100.0, then the larger the provided shape component, the dimmer the light. This is because the total light energy is spread over a larger surface area. Nit represents light energy as candelas per square meter. Ev100 represents light energy as an exposure value over an area. Ev100 values are exponential, so a value of 5.0 Ev100 is twice as bright as a value of 4.0 Ev100. With Nit and Ev100, the larger the shape, the brighter the light. This is because the total light energy increases with the shape’s surface area.Candela, Lumen, Nit, Ev100Lumen
IntensityThe light energy output or brightness in the photometric unit selected for Intensity mode.Candela, Lumen, Nit: 0 to infinity

Ev100: -infinity to +infinity
100
Attenuation radiusRefer to Attenuation radius properties below.BooleanDisabled
ShadowsRefer to Shadows properties below.BooleanDisabled
ShuttersRefer to Shutters properties below.BooleanDisabled
Both directionsEnable this property to emit light from both sides of the shape.

This field is available only for the Quad and Polygon light types.
BooleanDisabled
Fast approximationEnable this property to use a faster, lower-quality approximation for the lighting calculation, rather than the default high-quality linear transformed cosine technique.

This field is available only for the Quad light type.
BooleanDisabled

Attenuation radius properties

PropertyDescriptionValuesDefault
ModeSpecify whether attenuation is automatically calculated or explicitly set. Attenuation is the reduction of intensity of light energy as it travels, sometimes referred to as “falloff”.Automatic, ExplicitAutomatic
RadiusDefine the attenuation distance for the light in meters. From a given point on the surface of an area light, the radius is the distance beyond which the light has no effect. If the Radius value is set too small for a bright light, it might result in non-photorealistic attenuation.

This field is available only if Mode is set to Explicit.
0 to infinity0.5

Shadows properties

Shadow properties are available only for the Spot (disk) and Point (sphere) light types.

PropertyDescriptionValuesDefault
Enable shadowEnable shadow effects.BooleanDisabled
Shadowmap sizeSet the width and height of the shadowmap. The shadowmap texture contains information about the light and objects in an area of the scene. It’s used for Shadow Mapping, a technique that renders shadows in the scene. A greater size results in a more detailed shadow effect.256, 512, 1024, 2048256
Shadow filter methodSet the shadow filtering method to reduce aliasing in the shadowmap. The supported methods are percentage-closer filtering (PCF) or exponential shadow maps (ESM). ESM+PCF uses ESM, but falls back to PCF in areas where ESM might fail.None, PCF, ESM, ESM+PCFNone
Softening boundary widthTo adjust the softness of the shadow edges, set the width in meters for the boundary between the shadowed and the lit area. If the width is 0, the soft edge is disabled.

This field is available only if Pcf method is set to BoundarySearch.
0 to 1 meter0.25
Prediction sample countThe sample count used to predict whether the pixel is on the boundary.

This field is available only if Pcf method is set to BoundarySearch.
0 to 164
Filtering sample countThe sample count used to filter the shadow boundary.

This field is available only if Shadow filter method is set to PCF or ESM+PCF.
0 to 6412
Pcf methodThe PCF method used for shadows. The boundary search method performs a variable number of taps. The first tap determines if you’re on a shadow boundary, and the remaining taps find the occlusion amount. The bicubic method uses a fixed-size PCF kernel with kernel weights that are set to approximate bicubic filtering.

This field is available only if Shadow filter method is set to PCF or ESM+PCF.
BoundarySearch, BicubicBicubic

Tips

  • For shadow effects, the different properties and filter methods have varying impacts on performance and quality. Using PCF with the bicubic method provides the best compromise between performance and quality.

  • A Shadowmap size of 512 produces a result that balances quality and performance. The 256 size produces lower-quality shadows. The 1024 and 2048 sizes produce excellent quality, but they’re more expensive.

Shutters properties

Shutter properties are available only for the Spot (disk) and Spot (simple punctual) light types.

PropertyDescriptionValuesDefault
Enable shuttersEnable shutters to constrain the light to a cone shape.

This field is available only for the Spot (simple punctual) light type.
BooleanDisabled
Inner angleSet the inner cone angles in degrees.0.5 to 90.0 degrees35.0
Outer angleSet the outer cone angles in degrees.0.5 to 90.0 degrees45.0

Notes

  • When editing Light components, to see the shape and direction of the light, enable Debug Helpers in the Viewport.
