Vegetation Distribution Filter Component

Add the Vegetation Distribution Filter component to use gradients to control where vegetation or blocker instances are spawned in your vegetation area.

Provider

Vegetation Gem

Dependencies

Add one of the following required components when using the Vegetation Distribution Filter component:

Vegetation Distribution Filter properties

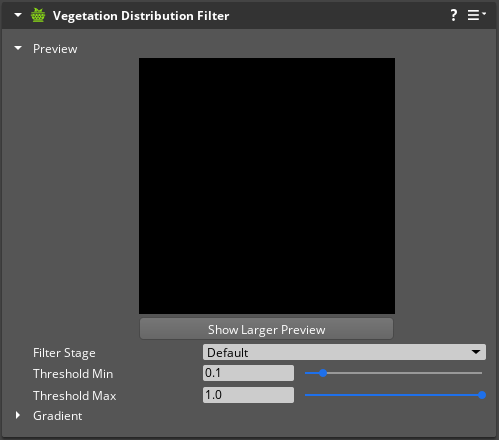

Vegetation Distribution Filter component properties

Property	Description	Values	Default
Preview	Displays the output gradient with the Threshold properties applied.
Filter Stage	Defines if filters are applied before or after modifiers.	`PreProcess`, `PostProcess`, or `Default`	`Default`
Threshold Min	Sets the minimum gradient value for vegetation instance placement.	Float 0.0 - 1.0	`0.1`
Threshold Max	Sets the maximum gradient value for vegetation instance placement.	Float 0.0 - 1.0	`1.0`
Gradient	Refer to Gradient properties below.

Gradient properties

Property	Description	Values	Default
Gradient Entity Id	Sets an entity with an active Gradient component.	Entity	None
Opacity	Sets the opacity of the input gradient.	Float: 0.0 - 1.0	`1.0`
Invert Input	Inverts the values of the input gradient.	Boolean	`Disabled`
Preview (Inbound)	Displays the input gradient provided by the entity specfified in Gradient Entity Id.
Enable Transform	If `Enabled`, the translation, scale, and rotation of the input gradient may be modified.	Boolean	`Disabled`
Translate	Sets the translation of the input gradient.	Vector3: -Infinity to Infinity	X:`0.0`, Y:`0.0`, Z:`0.0`
Scale	Sets the scale of the input gradient.	Vector3: 0.0 to Infinity	X:`1.0`, Y:`1.0`, Z:`1.0`
Rotate	Sets the rotation of the input gradient.	Vector3: -Infinity to Infinity	X:`0.0`, Y:`0.0`, Z:`0.0`
Enable Levels	If `Enabled`, the input and output values of the gradient may be modified.	Boolean	`Disabled`
Input Mid	Sets the median value of the input gradient.	Float: 0.0 - 1.0	`1.0`
Input Min	Sets a minimum value for the input gradient.	Float: 0.0 - 1.0	`0.0`
Input Max	Sets a maximum value for the input gradient.	Float: 0.0 - 1.0	`1.0`
Output Min	Sets a minimum value for the output gradient.	Float: 0.0 - 1.0	`0.0`
Output Max	Sets a maximum value for the output gradient.	Float: 0.0 - 1.0	`1.0`

DistributionFilterRequestBus

Use the following request functions with the DistributionFilterRequestBus EBus interface to communicate with Vegetation Distribution Filter components in your game.

Method Name	Description	Parameter	Return	Scriptable
`GetGradientSampler`	Returns the gradient sampler object of the distribution filter.	None	Gradient Sampler	Yes
`GetThresholdMax`	Returns the value of the Threshold Max property.	None	Float	Yes
`GetThresholdMin`	Returns the value of the Threshold Min property.	None	Float	Yes
`SetThresholdMax`	Sets the value of the Threshold Max property.	Float	None	Yes
`SetThresholdMin`	Sets the value of the Threshold Min property.	Float	None	Yes
